ENTRY

AT102

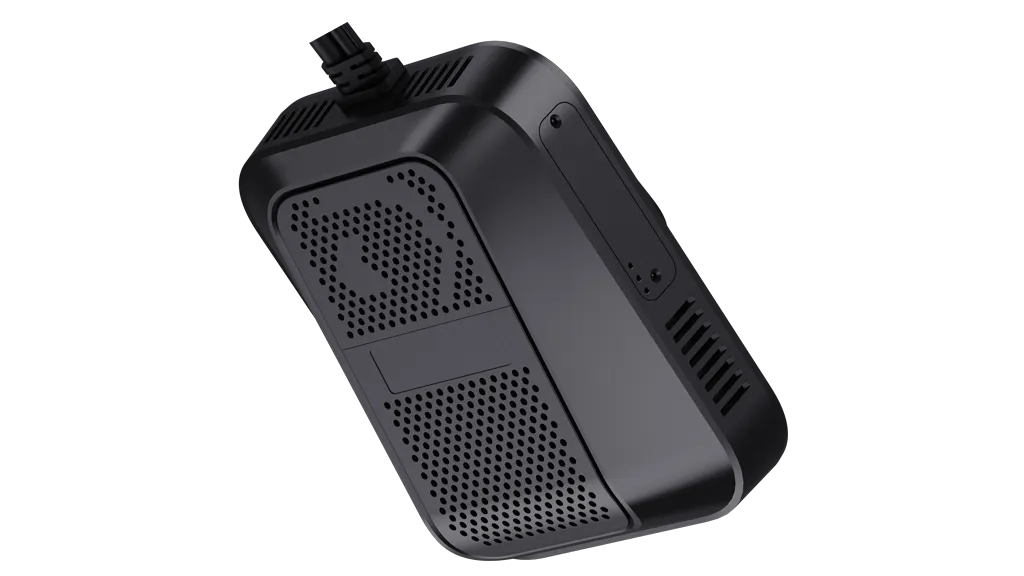

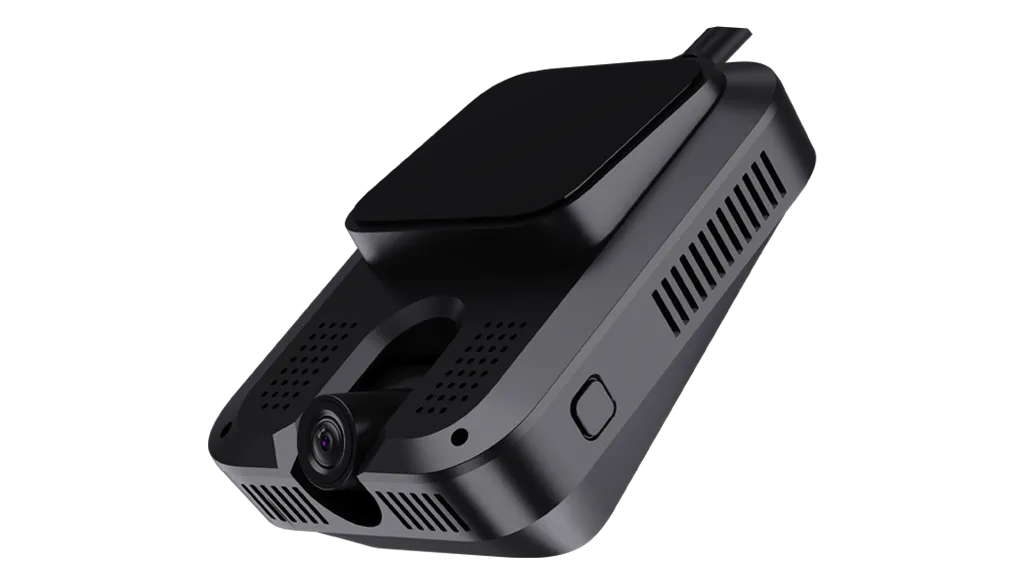

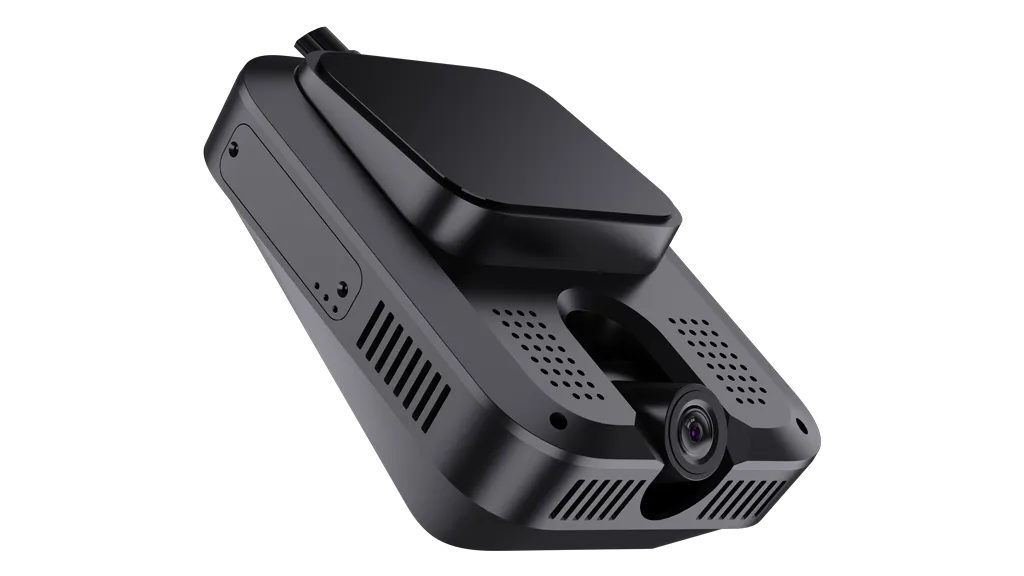

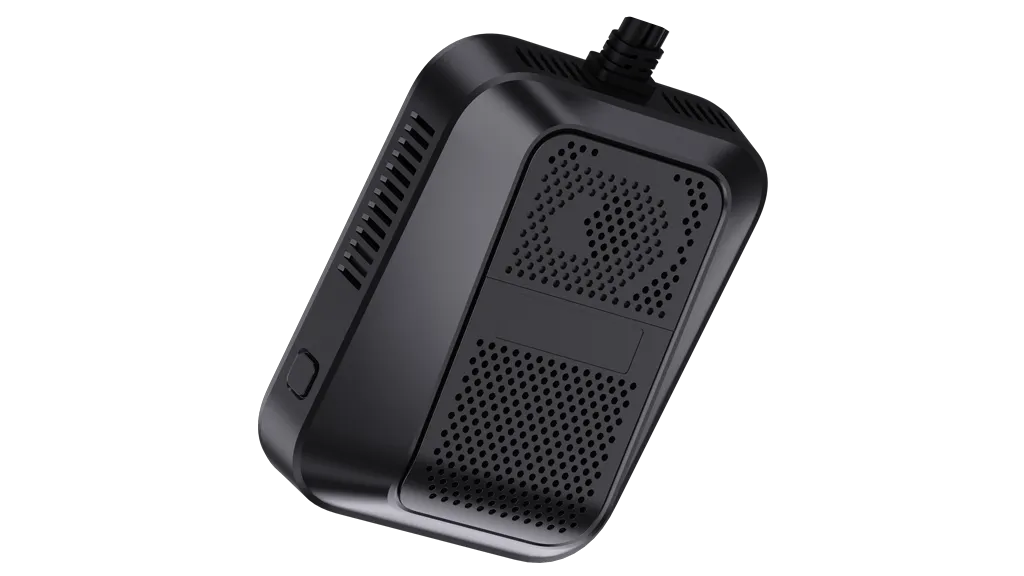

The AT102 is a compact and practical video telematics device that combines 2K HD video recording with built-in GNSS positioning to provide essential vehicle monitoring and location tracking. Its streamlined design enables quick installation and reliable operation, making it well suited for everyday fleet applications.

Designed for ride-hailing, taxi, logistics, and commercial vehicles, the AT102 delivers dependable video evidence and real-time location data to improve fleet visibility and operational efficiency. Offering the right balance of performance, simplicity, and affordability, it is an ideal solution for fleets seeking reliable telematics without unnecessary complexity.

Internal 1CH*2K

Cellular Band
- CAT1 (CN, IN)
- CAT1 (EMEA)
- CAT1 (LATAM)

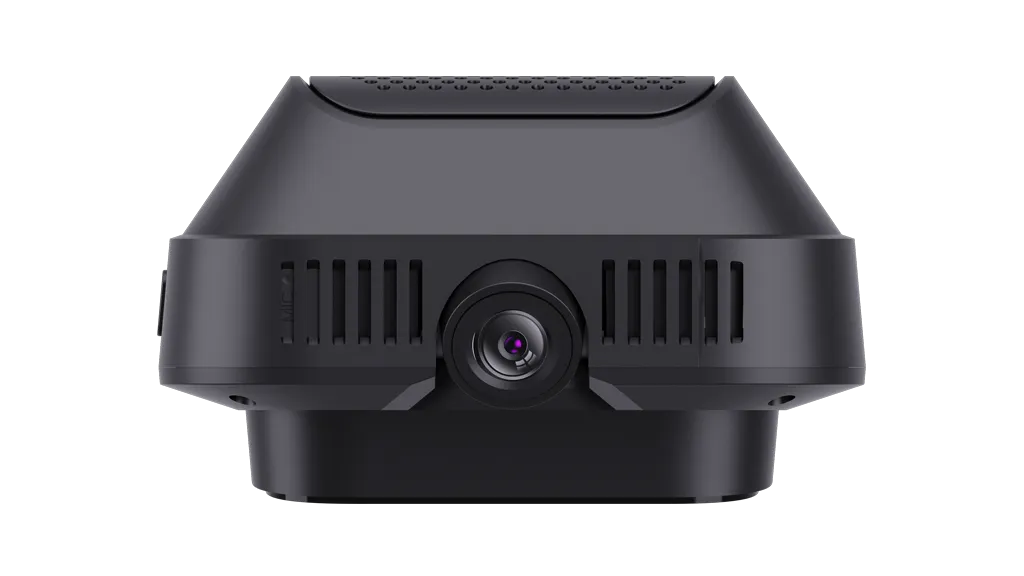

Built-in 2K Camera

Built-in 2K camera delivers sharp, detailed video footage for reliable vehicle monitoring, incident review, and high-quality video evidence.

Easy Installation

Streamlined design and simplified wiring enable quick installation and deployment, reducing installation time and minimizing vehicle downtime.

Location Tracking

Built-in GNSS positioning provides accurate real-time vehicle location tracking and historical trip data for efficient fleet management.

LTE 4G High-Speed Connectivity

High-speed LTE 4G connectivity enables reliable communication, real-time data transmission, remote management, and smooth video streaming.

Lens Angle Adjustable

The adjustable lens provides flexible camera positioning for optimal coverage and easy adaptation to different installation requirements..

Live Streaming Video

Transmits live video remotely, allowing fleet managers to monitor vehicles and driving conditions in real time from the platform.

History Video Playback & Download

Remotely accesses recorded footage for playback and download, providing valuable video evidence for incident investigation and fleet management.

Remote Engine Cut-off

Enables authorized fleet managers to remotely activate engine cut-off functions when necessary for vehicle security and operational control.

Panic Button

Provides drivers with a convenient emergency alert function to quickly notify fleet management of incidents or dangerous situations.

Built-in Mic and Speaker

Integrated microphone and speaker support two-way voice communication, enabling remote communication between drivers and fleet management personnel.

Wi-Fi for Configuration

Supports wireless connection by Wi-Fi for local configuration, preview and download footage, and convenient device maintenance.

OTA Firmware Update

Enables remote over-the-air firmware updates, simplifying fleet-wide maintenance and ensuring devices stay current with the latest features.

General

Operating System	Linux
Dimensions	105 * 82 * 46 mm
Weight	321g
Color	Black
Power Supply	9-36VDC
Power Lost Protection	Super Capacitor provides 10-15s of safe power backup (Optional)
Operating Temperature	-20 ~ +70 ℃
Operating Humidity	10%-90% Non-condensing

Hardware

CPU	ARM Cortex-A7@900MHz
RAM	DDR2 512Mb
External Storage	1*Micro SD card, max. 256GB
G-Sensor	3 Axis Accelerometer
GNSS	Multiple Positioning Mode
SIM Card	Nano SIM
LED	Red(Record), Yellow(Network), Green(GNSS)
I/O	ACC * 1, Relay * 1
Reset Button	Support
Upgrade Button	Support
Multi-Function Button	Wi-Fi Switch / Panic Button

Network

Cellular	LTE Cat1
Frequency Bands	CN, IN (Cat 1) Version: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 EMEA (Cat 1) Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LATAM (Cat 1) Version: LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
Wi-Fi	802.11b/g/n 2.4G, for Configuration
Protocol	JT/T 808-2013, JT/T 808-2019, JT/T1078-2016

Video / Audio

Channels	Built-in 1CH * 2K
Video Encoding	H.264/H.265
Audio Encoding	AAC/G.711A
Frame Rate	25 FPS
Microphone	Built-in
Speaker	Built-in, 3 Watts
Image Sensor	1/2.9'', 4 megapixel CMOS Sensor
Lens	118° FOV, 2G2P, F2.0 Aperture
Recording Quality	Main and Sub Stream, Adjustable Resolution
Recording Mode	ACC ON Recording, Time Lapse Recording
Audio Control	Enable / Mute
Voice Volume	Mute / Low / Medium / High
Video Format	TS, MP4
Image Format	JPG

* Note: Specifications and communication frequency bands may vary depending on the requirements of different countries and sales regions.
