Designed for Smarter Fleet Operations

Engineered with advanced AI, reliable connectivity, and flexible deployment, this solution helps fleets improve safety, increase operational efficiency, and gain complete visibility into every journey.

WATER PROOF

AT105

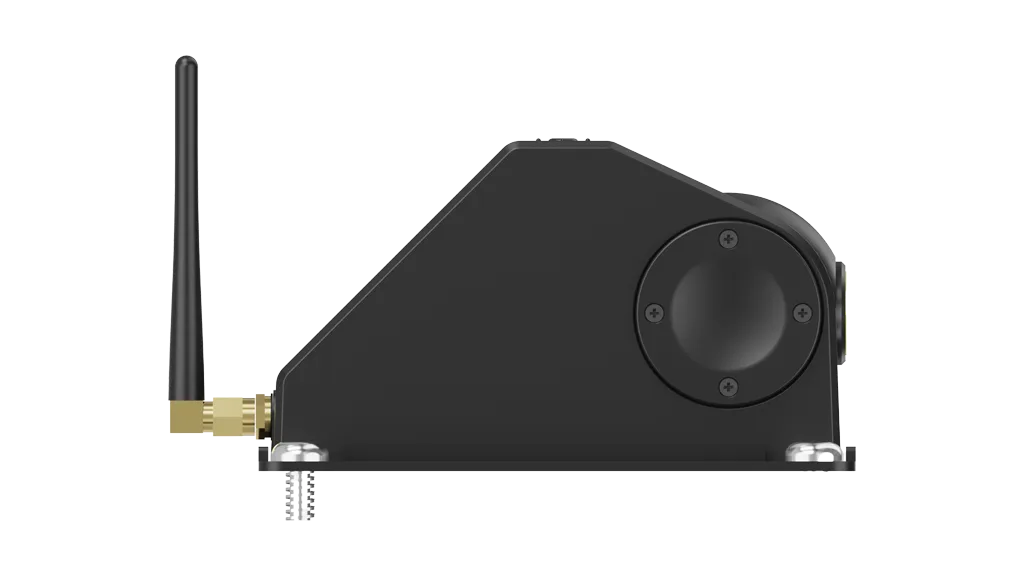

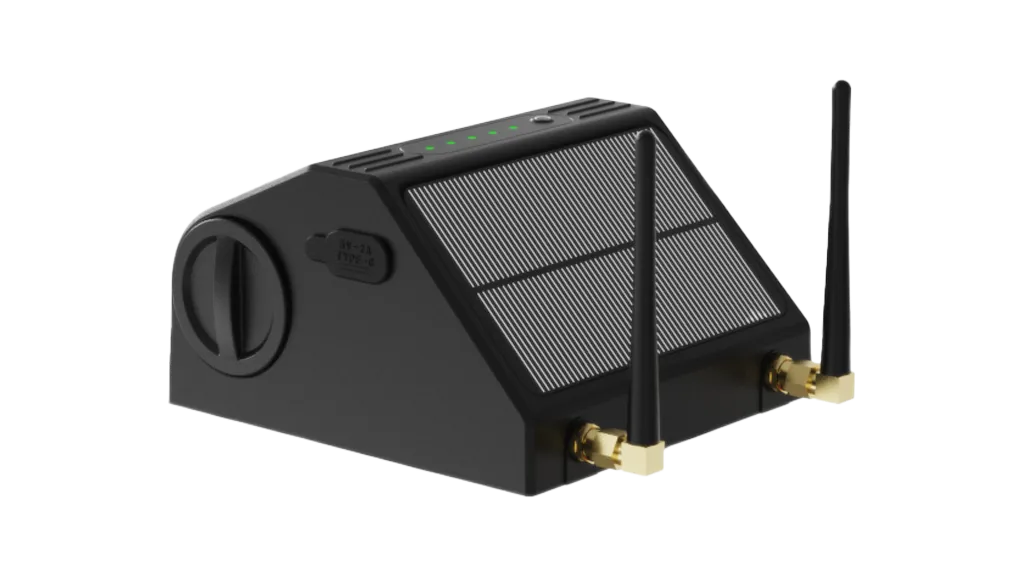

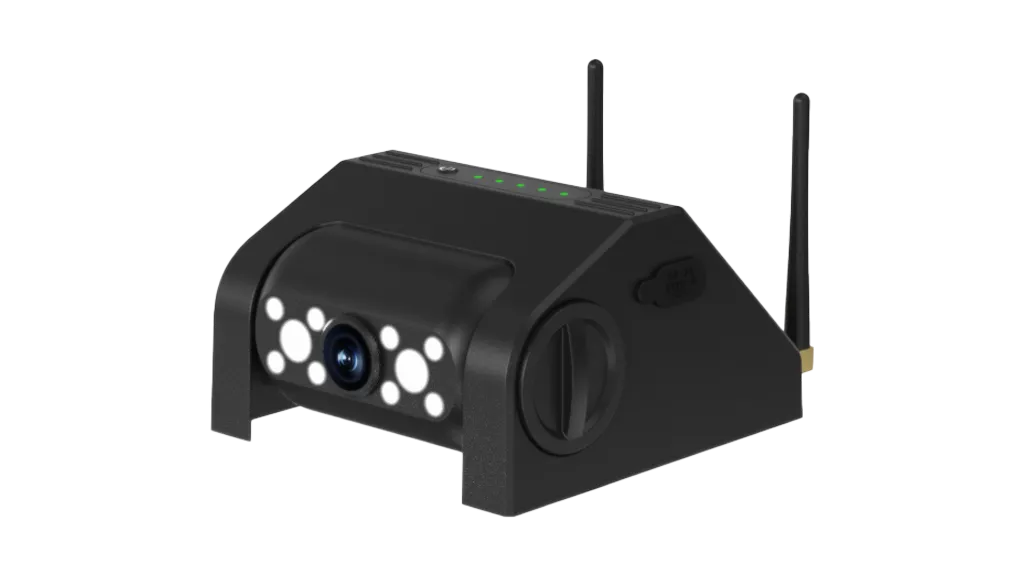

AT105 is a waterproof 4G AI dash camera integrating ADAS, DMS, and BSD. It combines AI vision algorithms, global 4G connectivity, and multi-mode GNSS positioning to enhance driving safety and reduce fleet risks.

Featuring a portable magnetic mount, solar charging, and tamper removal alerts, AT105 supports quick installation and provides up to 15 hours of continuous operation on a full charge. It seamlessly integrates with fleet management and video telematics platforms, making it ideal for fleets, Recreational Vehicle, construction machinery, sanitation vehicles, and other commercial applications.

Internal 1CH*1080P

High-Performance AI Chipset

Advanced AI processing delivers fast, accurate analysis of driving behavior and road conditions for reliable real-time safety alerts.

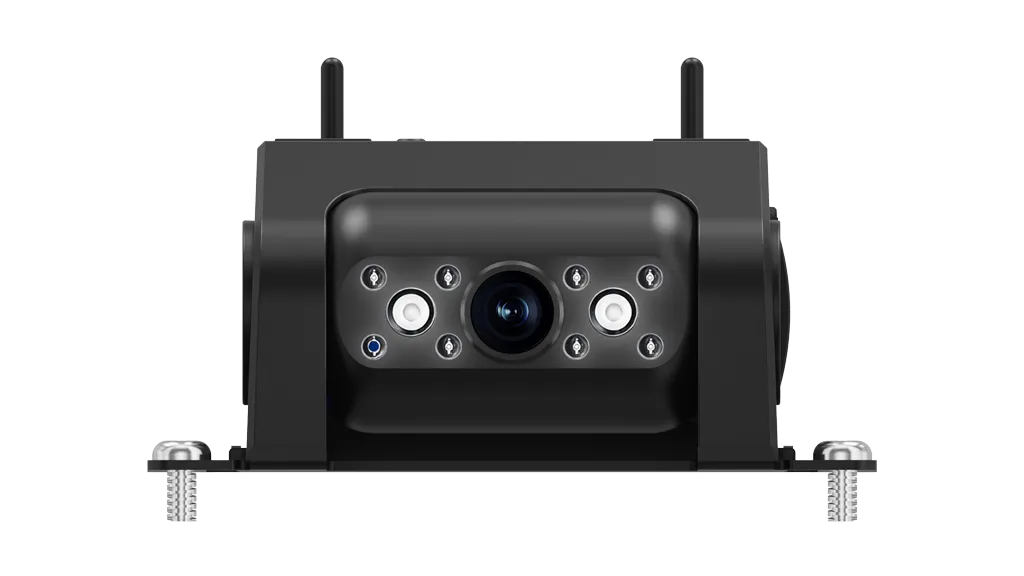

Built-in One HD Camera

Built-in one HD camera delivers sharp, detailed video footage for reliable vehicle monitoring, incident review, and high-quality video evidence.

ADAS + DMS + BSD Events

Detects critical road and driver risks with ADAS, DMS, and BSD algorithms, providing timely alerts to enhance fleet safety and reduce accidents.

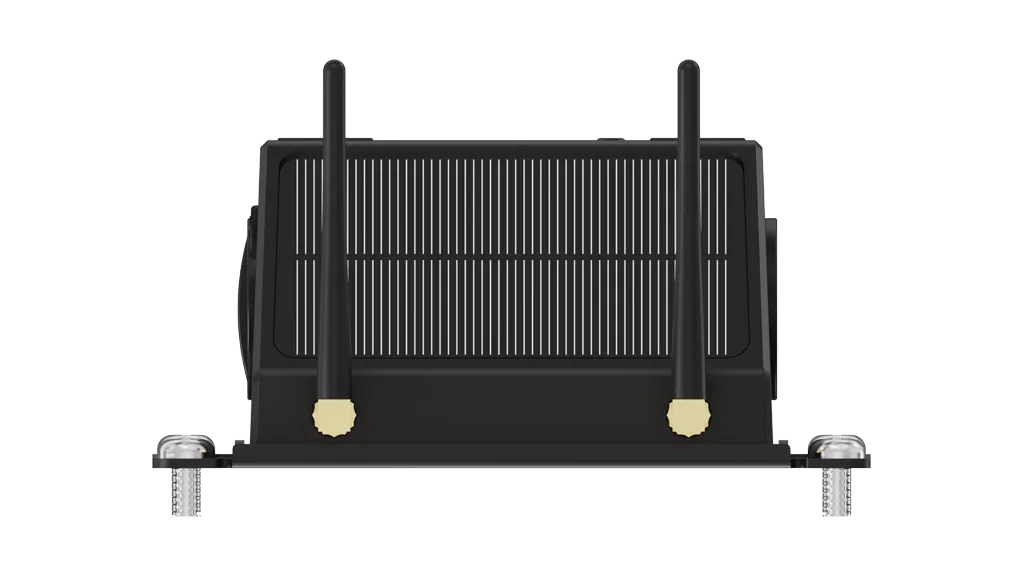

Solar Charging Support

Built-in solar panel helps recharge the battery and extend operating time, reducing the need for frequent manual charging.

Magnetic Portable Installation

Magnetic mounting enables quick, secure installation and easy removal, making the device convenient to relocate, charge, and maintain.

Tamper Removal Alert

Automatically detects unauthorized device removal and sends an alert through the platform, helping protect the device and vehicle.

Lens Angle Adjustable

The adjustable lens provides flexible camera positioning for optimal coverage and easy adaptation to different installation requirements.

High-Capacity 7800mAh Battery

Provides extended operating time, reducing charging frequency and supporting reliable long-term monitoring.

Location Tracking

Built-in GNSS positioning provides accurate real-time vehicle location tracking and historical trip data for efficient fleet management.

LTE 4G High-Speed Connectivity

High-speed LTE 4G connectivity enables reliable communication, real-time data transmission, remote management, and smooth video streaming.

Live Streaming Video

Transmits live video remotely, allowing fleet managers to monitor vehicles and driving conditions in real time from the platform.

History Video Playback & Download

Remotely accesses recorded footage for playback and download, providing valuable video evidence for incident investigation and fleet management.

Wi-Fi with AP & Station Mode

Supports both AP and Station modes for flexible wireless connectivity, local configuration, and convenient device maintenance.

OTA Firmware Update

Enables remote over-the-air firmware updates, simplifying fleet-wide maintenance and ensuring devices stay current with the latest features.

General

Operating System	Linux
Dimensions	115 * 108 * 65 mm
Weight	1.04kg
Color	Black
Power Supply	5V 500mA Type C
Battery Capacity	7800mAh
Operating Temperature	-20 ~ +70 ℃
Operating Humidity	10%-90% Non-condensing

Hardware

CPU	32-bit RISC CPU 1GHz，1T NPU
RAM	1Gb DDR3L
External Storage	1*Micro SD card, max. 512GB
G-Sensor	3 Axis Accelerometer
GNSS	Multiple Positioning Mode
SIM Card	Micro SIM

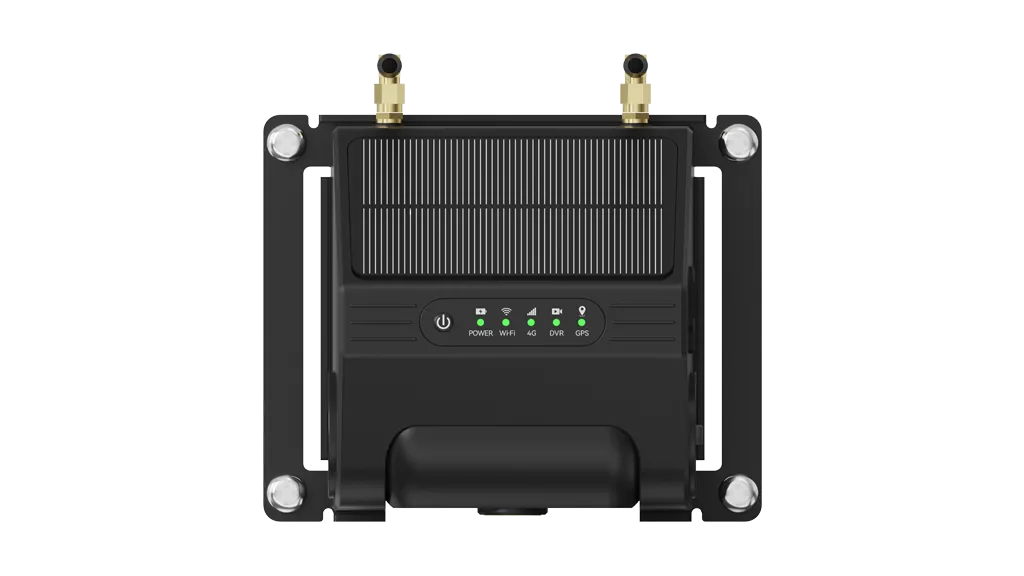

LED	Power, Wi-Fi, 4G, DVR, GPS
Multi-function Button	Long press: Power on/off; Short press: Wi-Fi on/off

Network

Cellular	LTE Cat 1
Frequency Bands	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B71/B34/B38/B39/B40/B41
Wi-Fi	802.11b/g/n 2.4G, supports AP & station mode
Protocol	JT/T 808-2013, JT/T 808-2019JT/T1078-2016, T/JSATL12-2017

Video

Channels	Built-in 1CH * 1080P
Video Encoding	H.264
Frame Rate	25 FPS
Image Sensor	1/2.9'', 2 MP CMOS Sensor, Supports IR Night Vision
Lens	120° FOV, 2G2P, F2.0 Aperture
Recording Quality	Main and Sub Stream, Adjustable Resolution
Recording Mode	Auto Recording, Time Lapse Recording, Event Recording
Video Format	TS, MP4
Image Format	JPG

AI Events

ADAS	Forward Collision Warning, Pedestrian Collision Warning, Lane Departure Warning, Headway Monitoring Warning, Front Vehicle Start Warning
DMS	Eye Close, Yawning, Distraction, Smoking, Phone Use, Driver Ab- normal, IR Blocking, Seatbelt Unfastend, Driver Face Recognition
BSD	Front, Left, Right and Back Blind Spot Detection

* Note: Specifications and communication frequency bands may vary depending on the requirements of different countries and sales regions.
