Designed for Smarter Fleet Operations

Engineered with advanced AI, reliable connectivity, and flexible deployment, this solution helps fleets improve safety, increase operational efficiency, and gain complete visibility into every journey.

ADVANCED

AT301

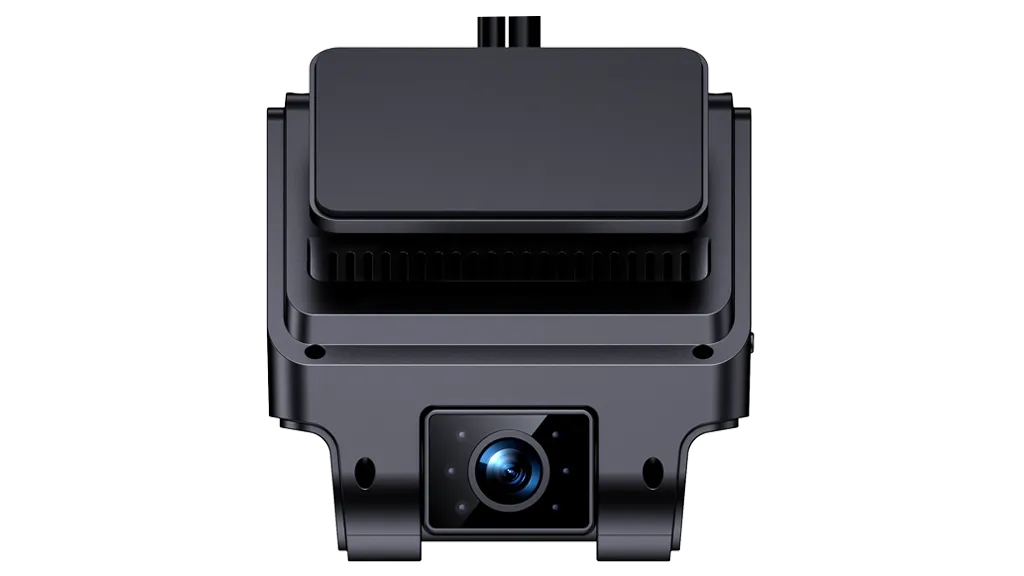

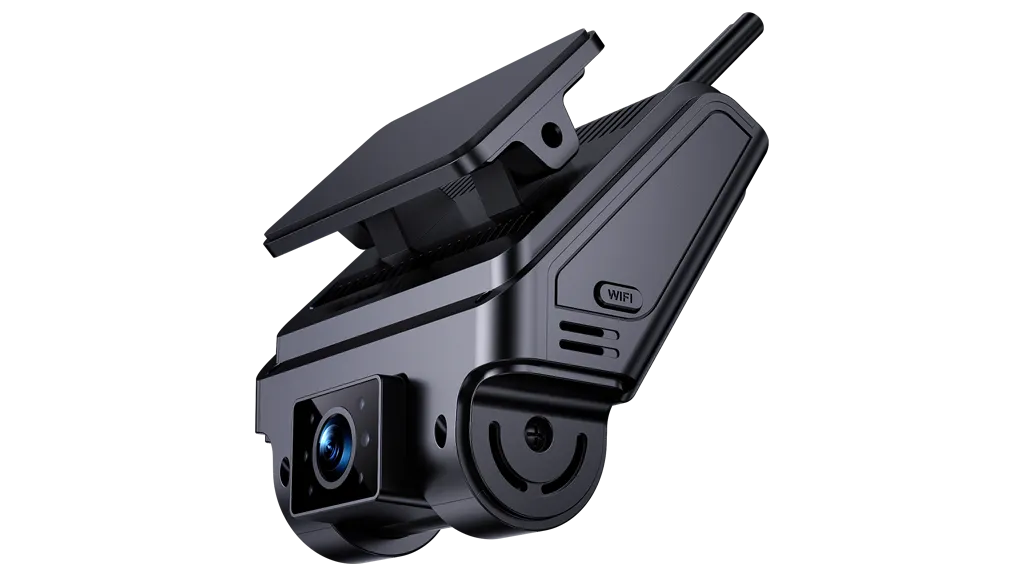

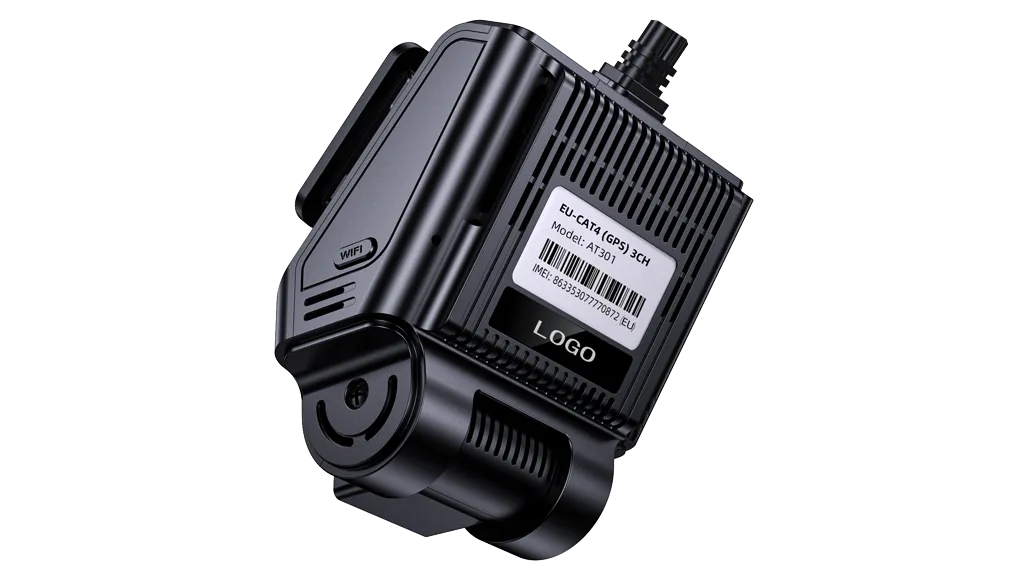

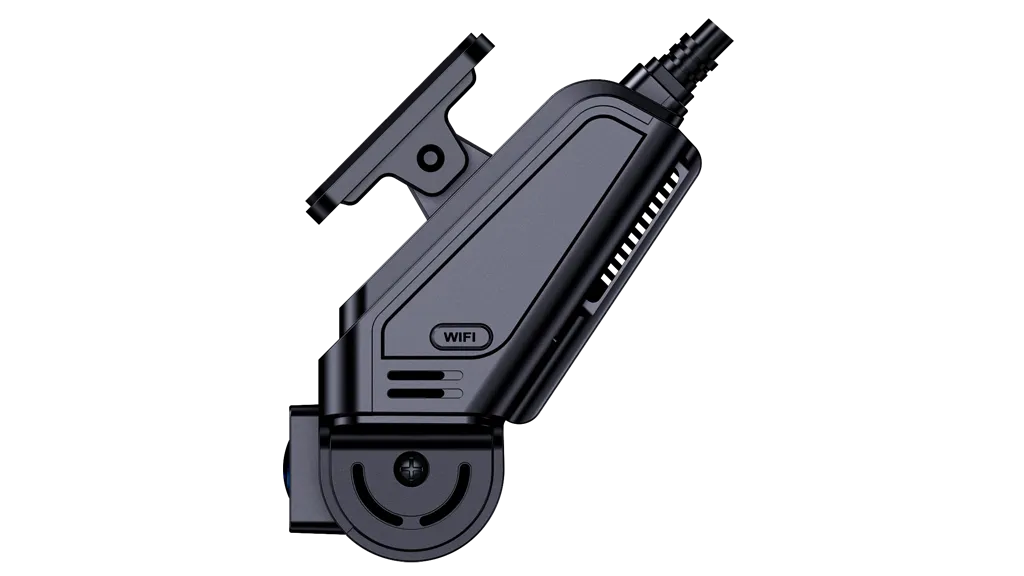

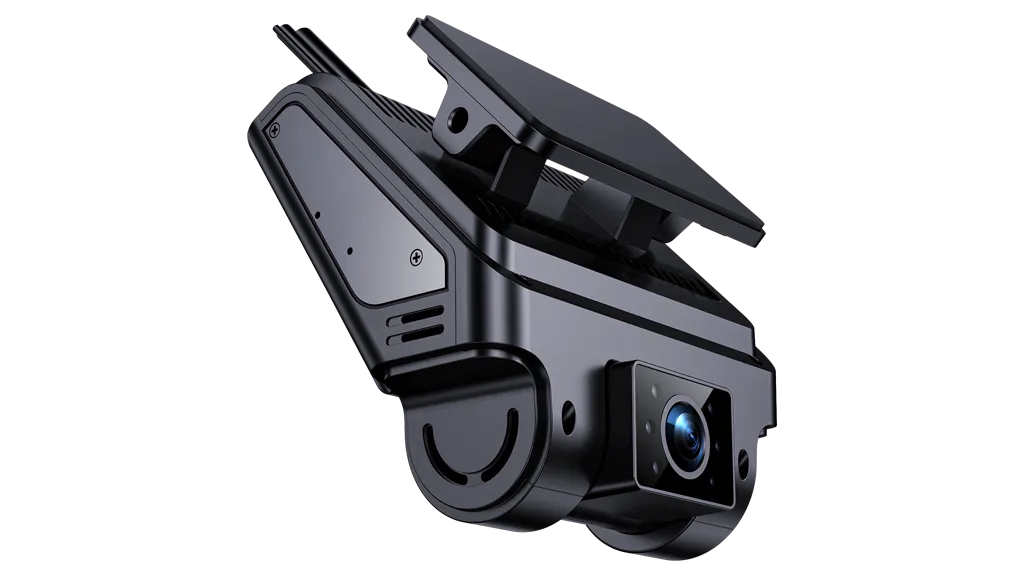

The AT301 is an AI-powered video telematics solution that combines ADAS and DMS in a single compact device. It detects unsafe driving behaviors such as fatigue, distraction, mobile phone use, smoking, and seatbelt violations, providing real-time voice alerts to improve driver safety and reduce operational risks.

Featuring a built-in 2K HD camera with a 180° adjustable lens, the AT301 can be configured for either road-facing or driver-facing monitoring and supports up to two external cameras for expanded coverage. Easy to install and deploy across various vehicle types, it supports industry-standard protocols for seamless integration with fleet management and video monitoring platforms.

Internal 1CH*2K External 2CH*1080P

High-Performance AI Chipset

Advanced AI processing delivers fast, accurate analysis of driving behavior and road conditions for reliable real-time safety alerts.

Up to 3 Video Channels

Supports up to four simultaneous video channels, providing comprehensive visibility across the vehicle and enhancing fleet monitoring capabilities.

Built-in 180° Adjustable Lens

The 180° adjustable lens provides flexible camera positioning for optimal coverage and easy adaptation to different installation requirements.

Multi-Platform Connection

Supports flexible integration with multiple fleet management and video telematics platforms for seamless deployment across different operating environments.

Location Tracking

Built-in GNSS positioning provides accurate real-time vehicle location tracking and historical trip data for efficient fleet management.

LTE 4G High-Speed Connectivity

High-speed LTE 4G connectivity enables reliable communication, real-time data transmission, remote management, and smooth video streaming.

ADAS + DMS + BSD Events

Detects critical road and driver risks with ADAS, DMS, and BSD algorithms, providing timely alerts to enhance fleet safety.

Live Streaming Video

Transmits live video remotely, allowing fleet managers to monitor vehicles and driving conditions in real time from the platform.

History Video Playback & Download

Remotely accesses recorded footage for playback and download, providing valuable video evidence for incident investigation and fleet management.

Remote Engine Cut-off

Enables authorized fleet managers to remotely activate engine cut-off functions when necessary for vehicle security and operational control.

Panic Button

Provides drivers with a convenient emergency alert function to quickly notify fleet management of incidents or dangerous situations.

Built-in Mic and Speaker

Integrated microphone and speaker support two-way voice communication, enabling remote communication between drivers and fleet management personnel.

Wi-Fi with AP & Station Mode

Supports both AP and Station modes for flexible wireless connectivity, local configuration, and convenient device maintenance.

Parking Monitor

Monitors the vehicle while parked and records relevant escenarios, helping protect vehicles and provide video evidence after incidents.

OTA Firmware Update

Enables remote over-the-air firmware updates, simplifying fleet-wide maintenance and ensuring devices stay current with the latest features.

eMMC Memory (Optional)

Optional built-in eMMC storage provides backup recording when the external MicroSD card is damaged or unavailable, helping protect critical video evidence.

General

Operating System	Linux
Dimensions	95 * 80 * 45 mm
Weight	205g
Color	Black
Power Supply	9-36VDC
Power Lost Protection	Super Capacitor provides 10-15s of safe power backup
Operating Temperature	-20 ~ +70 ℃
Operating Humidity	10%-90% Non-condensing

Hardware

CPU	32-bit RISC CPU 1.0 GHz，1T NPU
RAM	4Gb DDR3
Internal Storage	8GB EMMC memory for 3-4h backup recording (Optional)
External Storage	1*Micro SD card, max. 1TB
G-Sensor	3 Axis Accelerometer
GNSS	Multiple Positioning Mode
SIM Card	Nano SIM
LED	Red(Record), Yellow(Network), Green(GNSS)
I/O	ACC * 1, SOS * 1, Relay * 1, RS232 * 1
Reset Button	Support
Wi-Fi Switch	Support

Network

Cellular	LTE Cat1 or LTE Cat 4 + WCDMA +GSM
Frequency Bands	CN, IN (Cat 1) Version: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 EMEA (Cat 1) Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 EMEA (Cat 4) Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 LATAM (Cat 1) Version: LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 LATAM (Cat 4) Version: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8
Wi-Fi	802.11b/g/n 2.4G, Supports AP & Station Mode
Protocol	JT/T 808-2013, JT/T 808-2019JT/T1078-2016, T/JSATL12-2017

Video / Audio

Channels	Built-in 2CH * 2K, External 2CH * 1080P/720P
Video Encoding	H.264
Audio Encoding	AAC/G.711A
Frame Rate	25 FPS
Microphone	Built-in
Speaker	Built-in, 1.5 Watts
Image Sensor	1/2.9'', 4 megapixel CMOS Sensor
Lens	123° FOV, 2G2P, F2.0 Aperture
Recording Quality	Main and Sub Stream, Adjustable Resolution
Recording Mode	ACC ON Recording, Time Lapse Recording, Event Recording
Audio Control	Enable / Mute
Voice Volume	Mute / Low / Medium / High
Video Format	TS, MP4
Image Format	JPG

AI Events

ADAS	Forward Collision Warning, Pedestrian Collision Warning, Lane Departure Warning, Headway Monitoring Warning, Front Vehicle Start Warning
DMS	Eye Close, Yawning, Distraction, Smoking, Phone Use, Driver Ab- normal, IR Blocking, Seatbelt Unfastend, Driver Face Recognition
BSD	Front, Left, Right and Back Blind Spot Detection (Optional)

*Note: Specifications and communication frequency bands may vary depending on the requirements of different countries and sales regions.
