Designed for Smarter Fleet Operations

Engineered with advanced AI, reliable connectivity, and flexible deployment, this solution helps fleets improve safety, increase operational efficiency, and gain complete visibility into every journey.

COST EFFECTIVE

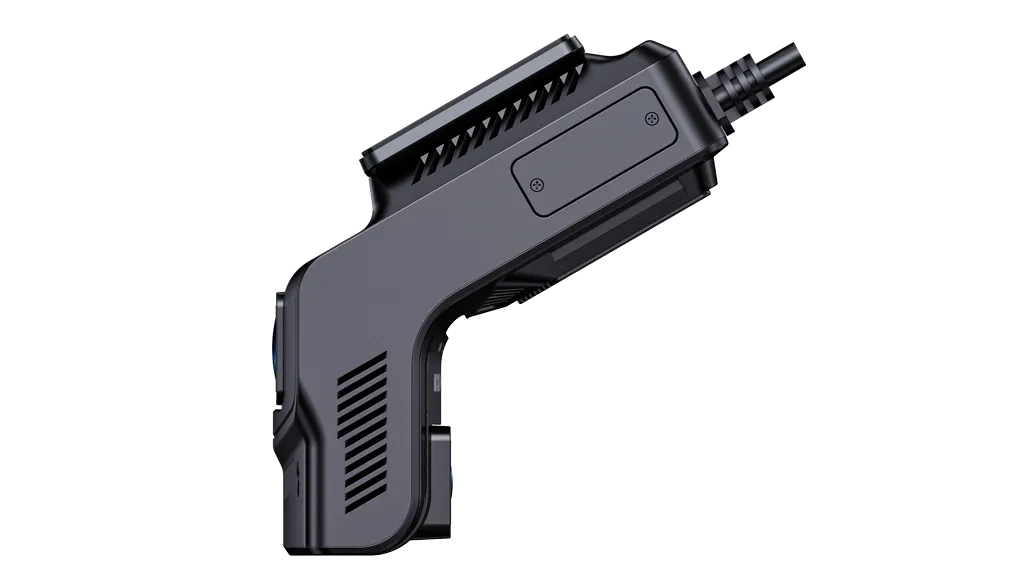

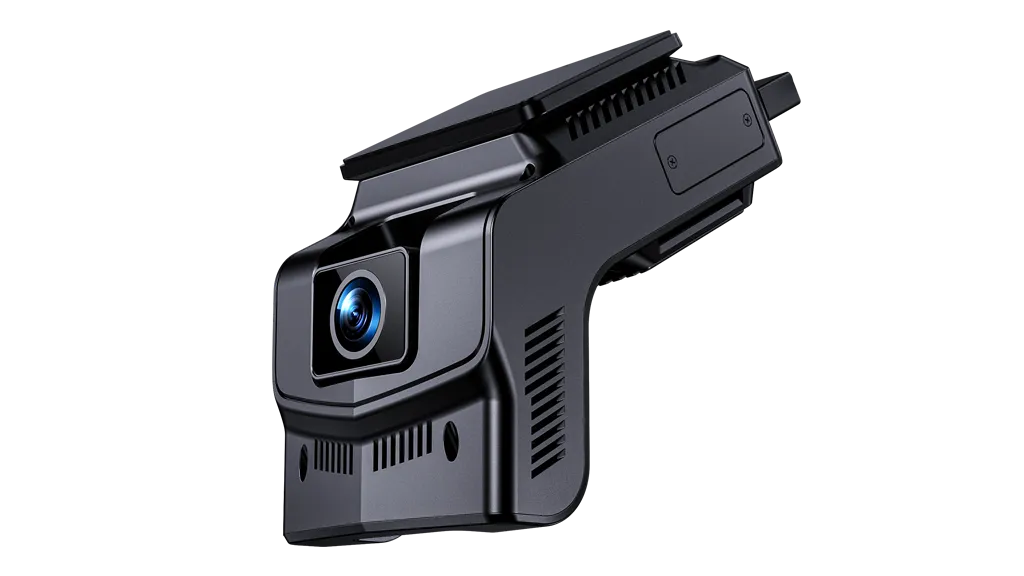

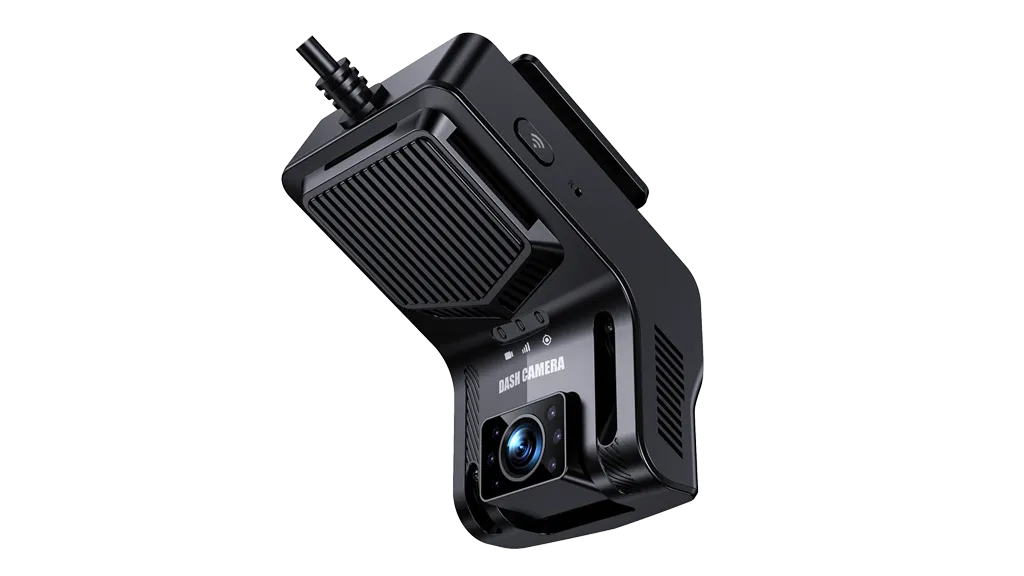

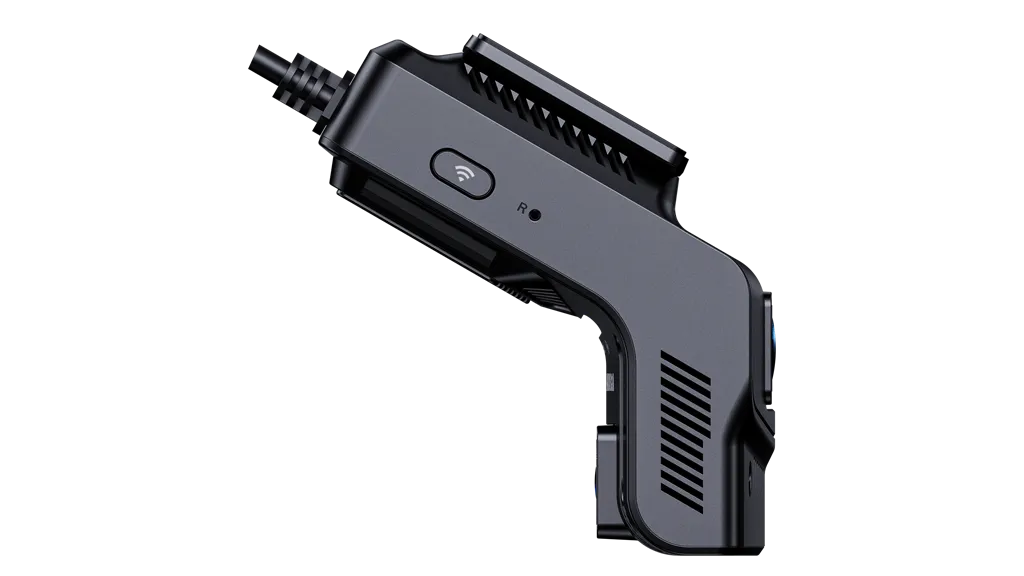

AT603N

The AT603N is a cost-effective AI dash camera with built-in ADAS and DMS cameras to enhance driver safety and fleet operations. Powered by advanced AI algorithms, it detects fatigue, distraction, mobile phone use, and seat belt violations, providing real-time voice alerts to help reduce accidents.

Designed for easy deployment, the AT603N features independently adjustable forward-facing and driver-facing cameras and supports an optional external camera, panic button, and engine immobilizer relay. It complies with industry-standard protocols for seamless integration with fleet management and video surveillance platforms, making it ideal for ride-hailing, taxi, logistics, and commercial fleet applications.

Internal 2CH*1080P External 1CH*1080P

High-Performance AI Chipset

Advanced AI processing delivers fast, accurate analysis of driving behavior and road conditions for reliable real-time safety alerts.

Up to 3 Video Channels

Supports up to four simultaneous video channels, providing comprehensive visibility across the vehicle and enhancing fleet monitoring capabilities.

Built-in ADAS + DMS Cameras

Integrated ADAS and DMS cameras monitor road conditions and driver behavior at the same time to identify risks and improve driving safety.

Easy Installation

Streamlined design and simplified wiring enable quick installation and deployment, reducing installation time and minimizing vehicle downtime.

Multi-Platform Connection

Supports flexible integration with multiple fleet management and video telematics platforms for seamless deployment across different operating environments.

Location Tracking

Built-in GNSS positioning provides accurate real-time vehicle location tracking and historical trip data for efficient fleet management.

LTE 4G High-Speed Connectivity

High-speed LTE 4G connectivity enables reliable communication, real-time data transmission, remote management, and smooth video streaming.

Lens Angle Adjustable

The adjustable lens provides flexible camera positioning for optimal coverage and easy adaptation to different installation requirements.

Live Streaming Video

Transmits live video remotely, allowing fleet managers to monitor vehicles and driving conditions in real time from the platform.

History Video Playback & Download

Remotely accesses recorded footage for playback and download, providing valuable video evidence for incident investigation and fleet management.

Built-in Mic and Speaker

Integrated microphone and speaker support two-way voice communication, enabling remote communication between drivers and fleet management personnel.

Wi-Fi with AP & Station Mode

Supports both AP and Station modes for flexible wireless connectivity, local configuration, and convenient device maintenance.

Parking Monitor

Monitors the vehicle while parked and records relevant escenarios, helping protect vehicles and provide video evidence after incidents.

OTA Firmware Update

Enables remote over-the-air firmware updates, simplifying fleet-wide maintenance and ensuring devices stay current with the latest features.

Panic Button (Optional)

Provides drivers with a convenient emergency alert function to quickly notify fleet management of incidents or dangerous situations.

Remote Engine Cut-off (Optional)

Enables authorized fleet managers to remotely activate engine cut-off functions when necessary for vehicle security and operational control.

General

Operating System	Linux
Dimensions	66 * 88 * 98 mm
Weight	357g
Color	Black
Power Supply	9-36VDC
Power Lost Protection	Super Capacitor provides 10-15s of safe power backup (Optional)
Operating Temperature	-20 ~ +70 ℃
Operating Humidity	10%-90% Non-condensing

Hardware

CPU	Dual-Core processor@1.2GHz 0.5T NPU
RAM	1Gb DDR3L
External Storage	1*Micro SD card, max. 512GB
G-Sensor	3 Axis Accelerometer
GNSS	Multiple Positioning Mode
SIM Card	Nano SIM
LED	Purple/Blue/Red(Record), Yellow(Network), Green(GNSS)
I/O	ACC * 1, SOS * 1(Optional), Relay * 1(Optional), RS232 * 1(Optional)
Reset Button	Support
Wi-FI Switch	Support

Network

Cellular	LTE Cat1 or LTE Cat 4 + WCDMA +GSM
Frequency Bands	CN, IN (Cat 1) Version: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 EMEA (Cat 1) Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 EMEA (Cat 4) Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 LATAM (Cat 1) Version: LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 LATAM (Cat 4) Version: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8
Wi-Fi	802.11b/g/n 2.4G, Supports AP & Station Mode
Protocol	JT/T 808-2013, JT/T 808-2019JT/T1078-2016, T/JSATL12-2017

Video / Audio

Channels	Built-in 2CH * 1080P, External 1CH * 1080P/720P
Video Encoding	H.264
Audio Encoding	AAC/G.711A
Frame Rate	25 FPS
Microphone	Built-in
Speaker	Built-in, 1.1 Watts
Image Sensor	ADAS: 1/2.9'', 2 MP CMOS Sensor; DMS: 1/2.9'', 2 MP CMOS Sensor
Lens	ADAS: 120° FOV, 2G2P, F2.0 Aperture; DMS: 110° FOV, 2G2P, F2.0 Aperture
Recording Quality	Main and Sub Stream, Adjustable Resolution
Recording Mode	ACC ON Recording, Time Lapse Recording, Event Recording
Audio Control	Enable / Mute
Voice Volume	Mute / Low / Medium / High
Video Format	TS, MP4
Image Format	JPG

AI Events

ADAS	Forward Collision Warning, Pedestrian Collision Warning, Lane Departure Warning, Headway Monitoring Warning, Front Vehicle Start Warning
DMS	Eye Close, Yawning, Distraction, Smoking, Phone Use, Driver Ab- normal, IR Blocking, Seatbelt Unfastend, Driver Face Recognition
BSD	Front, Left, Right and Back Blind Spot Detection (Optional)

*Note: Specifications and communication frequency bands may vary depending on the requirements of different countries and sales regions.
