Designed for Smarter Fleet Operations

Engineered with advanced AI, reliable connectivity, and flexible deployment, this solution helps fleets improve safety, increase operational efficiency, and gain complete visibility into every journey.

ADVANCED

AT722

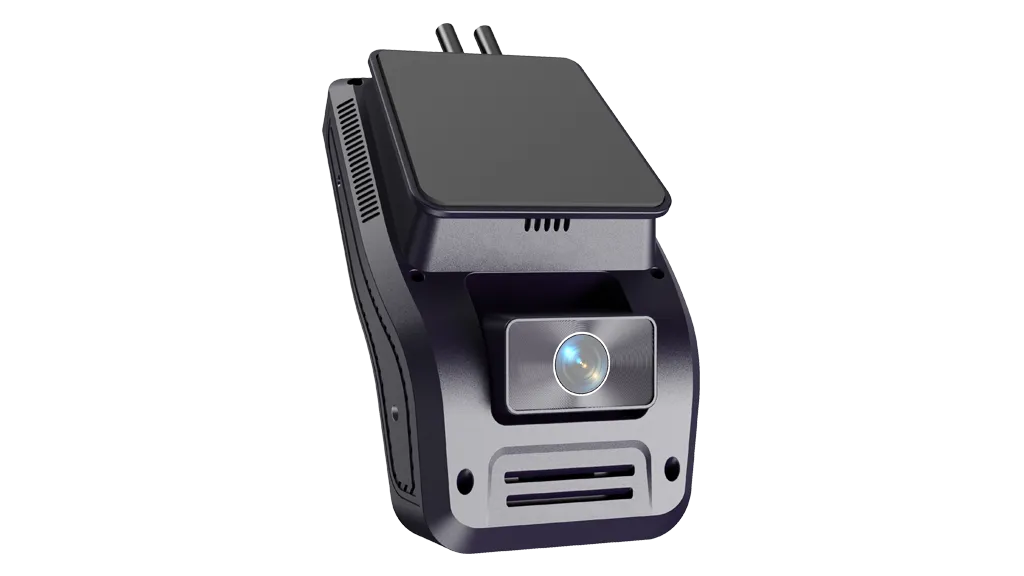

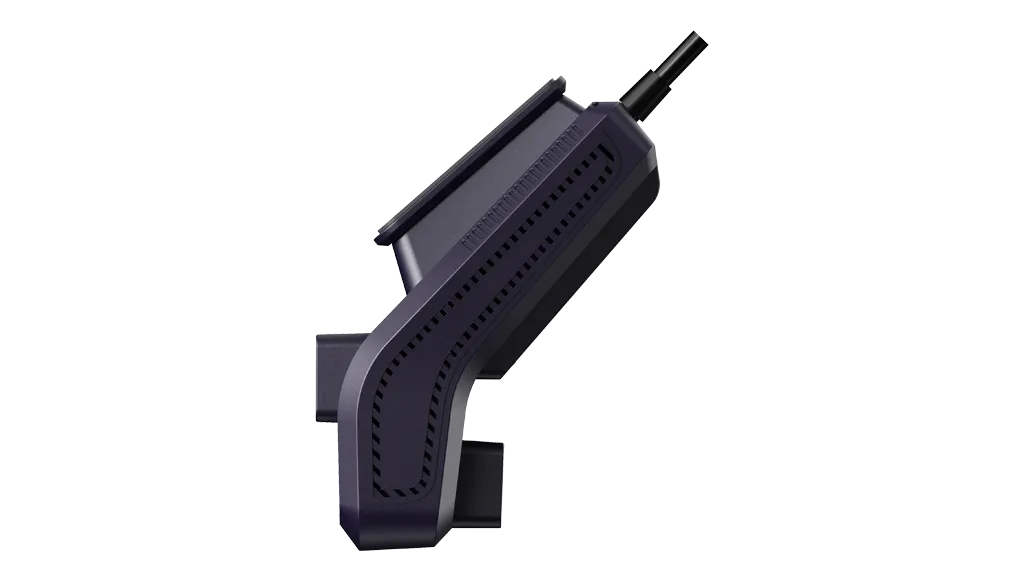

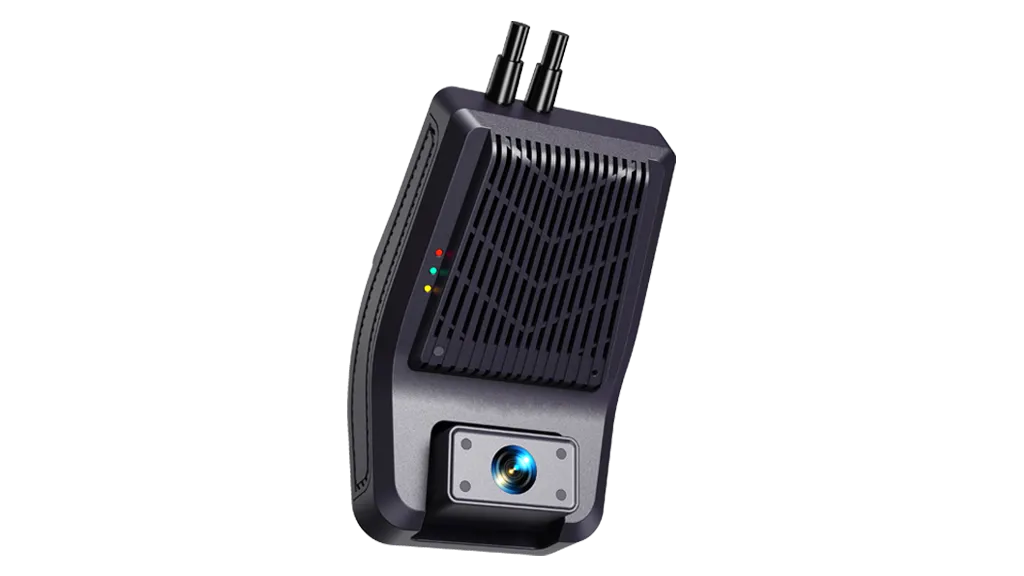

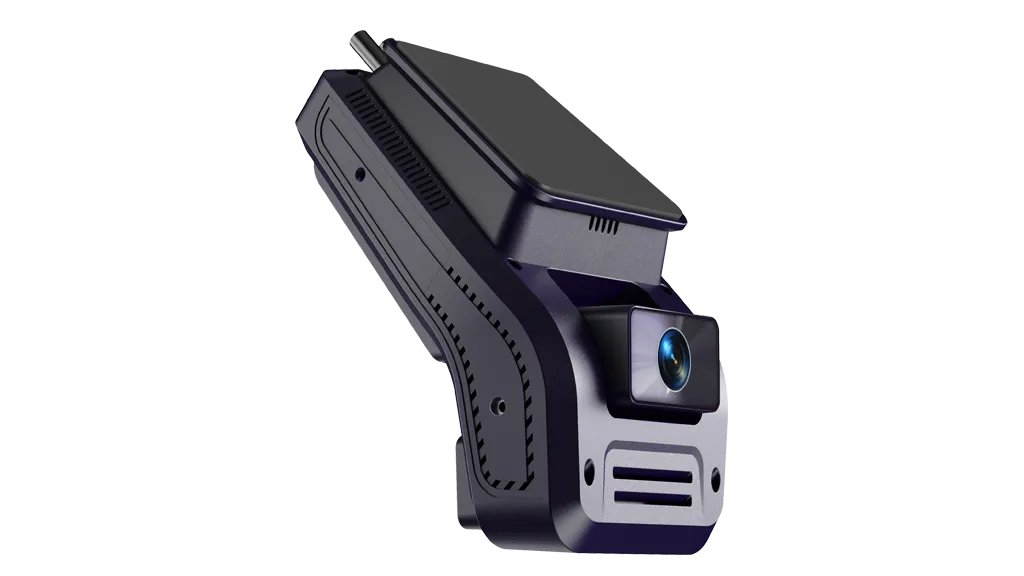

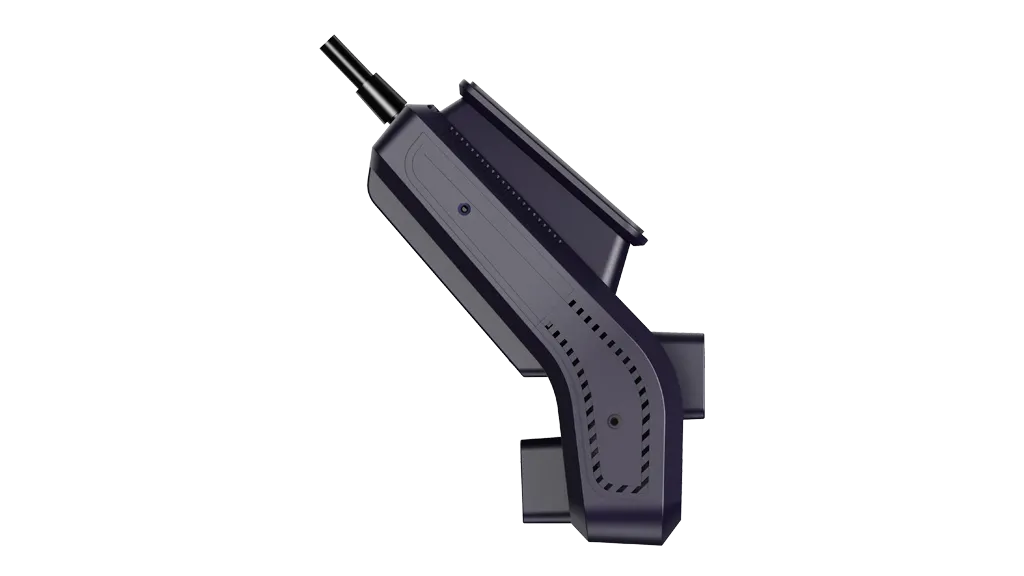

The AT722 is an intelligent AI dash camera designed to enhance fleet safety, driver accountability, and operational visibility. Featuring dedicated dual cameras for ADAS and DMS, it simultaneously monitors road conditions and driver behavior, detecting fatigue, distraction, mobile phone use, and seatbelt violations while providing real-time voice alerts to reduce accident risks.

Equipped with driver facial recognition and real-time GPS tracking, it enables fleet operators to verify driver identity, improve compliance, and monitor vehicle locations with confidence. Easy to install and supports industry-standard protocols for seamless connectivity with fleet management and video telematics platforms, making it ideal for fleet management, public transportation and cargo logistics.

Internal 2CH*1080P External 2CH*1080P

High-Performance AI Chipset

Advanced AI processing delivers fast, accurate analysis of driving behavior and road conditions for reliable real-time safety alerts.

Up to 4 Video Channels

Supports up to four simultaneous video channels, providing comprehensive visibility across the vehicle and enhancing fleet monitoring capabilities.

Built-in ADAS + DMS Cameras

Integrated ADAS and DMS cameras monitor road conditions and driver behavior at the same time to identify risks and improve driving safety.

Driver Face Recognition

Identifies and verifies drivers through facial recognition, supporting driver authentication, accountability, and improved fleet security management.

Multi-Platform Connection

Supports flexible integration with multiple fleet management and video telematics platforms for seamless deployment across different operating environments.

Location Tracking

Built-in GNSS positioning provides accurate real-time vehicle location tracking and historical trip data for efficient fleet management.

LTE 4G High-Speed Connectivity

High-speed LTE 4G connectivity enables reliable communication, real-time data transmission, remote management, and smooth video streaming.

Lens Angle Adjustable

The adjustable lens provides flexible camera positioning for optimal coverage and easy adaptation to different installation requirements.

Live Streaming Video

Transmits live video remotely, allowing fleet managers to monitor vehicles and driving conditions in real time from the platform.

History Video Playback & Download

Remotely accesses recorded footage for playback and download, providing valuable video evidence for incident investigation and fleet management.

Remote Engine Cut-off

Enables authorized fleet managers to remotely activate engine cut-off functions when necessary for vehicle security and operational control.

Panic Button

Provides drivers with a convenient emergency alert function to quickly notify fleet management of incidents or dangerous situations.

Built-in Mic and Speaker

Integrated microphone and speaker support two-way voice communication, enabling remote communication between drivers and fleet management personnel.

Wi-Fi with AP & Station Mode

Supports both AP and Station modes for flexible wireless connectivity, local configuration, and convenient device maintenance.

Parking Monitor

Monitors the vehicle while parked and records relevant escenarios, helping protect vehicles and provide video evidence after incidents.

OTA Firmware Update

Enables remote over-the-air firmware updates, simplifying fleet-wide maintenance and ensuring devices stay current with the latest features.

General

Operating System	Linux
Dimensions	133 * 78 * 62mm
Weight	565g
Color	Black
Power Supply	9-36VDC
Power Lost Protection	Super Capacitor provides 10-15s of safe power backup
Operating Temperature	-20 ~ +70 ℃
Operating Humidity	10%-90% Non-condensing

Hardware

CPU	Dual-Core processor@1.2GHz 1T NPU
RAM	2Gb DDR3
External Storage	1*Micro SD card, max. 1TB
G-Sensor	3 Axis Accelerometer
GNSS	Multiple Positioning Mode
SIM Card	Micro SIM
LED	Red(Record), Yellow(Network), Green(GNSS)
I/O	ACC * 1, SOS * 1, Relay * 1, RS232 * 1
Reset Button	Support
USB Type C Port	Reserved

Network

Cellular	LTE Cat1 or LTE Cat 4 + WCDMA +GSM
Frequency Bands	CN, IN (Cat 1) Version: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 EMEA (Cat 1) Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 EMEA (Cat 4) Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 LATAM (Cat 1) Version: LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 LATAM (Cat 4) Version: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8
Wi-Fi	802.11b/g/n 2.4G, Supports AP & Station Mode
Protocol	JT/T 808-2013, JT/T 808-2019JT/T1078-2016, T/JSATL12-2017

Video / Audio

Channels	Built-in 2CH * 1080P, External 2CH * 1080P
Video Encoding	H.264
Audio Encoding	AAC/G.711A
Frame Rate	25 FPS
Microphone	Built-in
Speaker	Built-in, 1.5 Watts
Image Sensor	ADAS: 1/2.9'', 2 MP CMOS Sensor; DMS: 1/2.9'', 2 MP CMOS Sensor
Lens	ADAS: 115° FOV, 2G2P, F2.0 Aperture; DMS: 138° FOV, 2G2P, F1.7 Aperture
Recording Quality	Main and Sub Stream, Adjustable Resolution
Recording Mode	ACC ON Recording, Time Lapse Recording, Event Recording
Audio Control	Enable / Mute
Voice Volume	Mute / Low / Medium / High
Video Format	TS, MP4
Image Format	JPG

AI Events

ADAS	Forward Collision Warning, Pedestrian Collision Warning, Lane Departure Warning, Headway Monitoring Warning, Front Vehicle Start Warning
DMS	Eye Close, Yawning, Distraction, Smoking, Phone Use, Driver Ab- normal, IR Blocking, Seatbelt Unfastend, Driver Face Recognition
BSD	Front, Left, Right and Back Blind Spot Detection (Optional)

* Note: Specifications and communication frequency bands may vary depending on the requirements of different countries and sales regions.
