Designed for Smarter Fleet Operations
Engineered with advanced AI, reliable connectivity, and flexible deployment, this solution helps fleets improve safety, increase operational efficiency, and gain complete visibility into every journey.
- All products
- M503
- All products
High-Performance AI Chipset
Advanced AI processing delivers fast, accurate analysis of driving behavior and road conditions for reliable real-time safety alerts.
Up to 5 Video Channels
Supports up to five simultaneous video channels, providing comprehensive visibility across the vehicle and enhancing fleet monitoring capabilities.
ADAS + DMS + BSD Events
Detects critical road and driver risks with ADAS, DMS, and BSD algorithms, providing timely alerts to enhance fleet safety and reduce accidents.

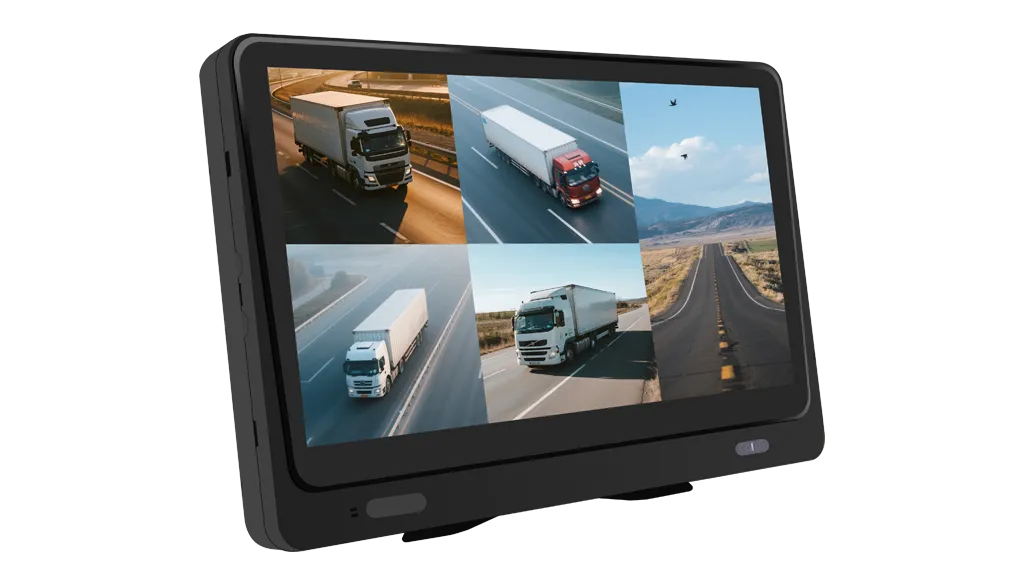

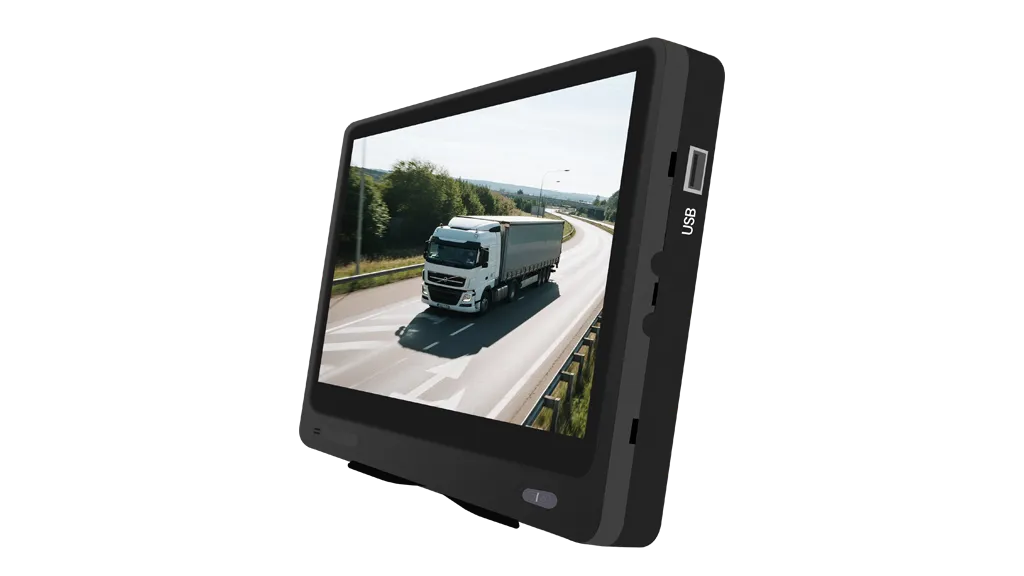

Built-in 10.1” Touch Screen
The 10.1-inch touchscreen provides an intuitive interface for device configuration, video viewing, playback, and daily fleet operations.
Multi-Platform Connection
Supports flexible integration with multiple fleet management and video telematics platforms for seamless deployment across different operating environments.
Location Tracking
Built-in GNSS positioning provides accurate real-time vehicle location tracking and historical trip data for efficient fleet management.
LTE 4G High-Speed Connectivity
High-speed LTE 4G connectivity enables reliable communication, real-time data transmission, remote management, and smooth video streaming.
Live Streaming Video
Transmits live video remotely, allowing fleet managers to monitor vehicles and driving conditions in real time from the platform.
History Video Playback & Download
Remotely accesses recorded footage for playback and download, providing valuable video evidence for incident investigation and fleet management.
Remote Engine Cut-off
Enables authorized fleet managers to remotely activate engine cut-off functions when necessary for vehicle security and operational control.
Built-in Mic and Speaker
Integrated microphone and speaker support two-way voice communication, enabling remote communication between drivers and fleet management personnel.
Wi-Fi with AP & Station Mode
Supports both AP and Station modes for flexible wireless connectivity, local configuration, and convenient device maintenance.
Parking Monitor
Monitors the vehicle while parked and records relevant escenarios, helping protect vehicles and provide video evidence after incidents.
OTA Firmware Update
Enables remote over-the-air firmware updates, simplifying fleet-wide maintenance and ensuring devices stay current with the latest features.
mSATA SSD Storage (Optional)
Optional mSATA SSD storage provides expanded high-capacity local storage for extended video recording and reliable onboard data retention..
Panic Button (Optional)
Provides drivers with a convenient emergency alert function to quickly notify fleet management of incidents or dangerous situations.
Operating System | Linux |
Dimensions | 25*17*3.5 cm |
Weight | 1.83kg |
Color | Black |
Power Supply | 9-36VDC |
Power Lost Protection | Super Capacitor provides 10-15s of safe power backup (Optional) |
Operating Temperature | -20 ~ +70 ℃ |
Operating Humidity | 10%-90% Non-condensing |
CPU | 32-bit RISC CPU 1GHz,1T NPU |
RAM | 2Gb DDR3 |
External Storage | 1*Micro SD card, max. 1TB, 1* mSATA SSD (Optional) |
G-Sensor | 3 Axis Accelerometer |
GNSS | Multiple Positioning Mode |
SIM Card | Standard SIM |
I/O | ACC *1, SOS*1, Relay*1, DIN*3, RS232*2, VOUT*1 |
Screen | 10.1” 720P ISP Screen |
USB Port | Support, Type A |
Cellular | LTE Cat 4 + WCDMA |
Frequency Bands | CN, IN Version:
EMEA Version:
LATAM Version:
|
Wi-Fi | 802.11b/g/n 2.4G, supports AP & Station Mode |
Protocol | JT/T 808-2013, JT/T 808-2019JT/T1078-2016, T/JSATL12-2017 |
Channels | External 5CH * 1080P |
Video Encoding | H.264 |
Audio Encoding | AAC/G.711A |
Frame Rate | 15 FPS |
Microphone | Built-in |
Speaker | Built-in, 1.5 Watts |
Recording Quality | Main and Sub Stream, Adjustable Resolution |
Recording Mode | ACC ON Recording, Time Lapse Recording, Event Recording |
Audio Control | Enable / Mute |
Voice Volume | 1-10 levels |
Video Format | MP4 |
Image Format | JPG |
ADAS | Forward Collision Warning, Pedestrian Collision Warning, Lane Departure Warning, Headway Monitoring Warning, Front Vehicle Start Warning |
DMS | Eye Close, Yawning, Distraction, Smoking, Phone Use, Driver Ab- normal, IR Blocking, Seatbelt Unfastend, Driver Face Recognition |
BSD | Front, Left, Right and Back Blind Spot Detection |
* Note: Specifications and communication frequency bands may vary depending on the requirements of different countries and sales regions.
